Juvo B5 Power Wheelchair
Klarna

Juvo B5 Power Wheelchair

Regular price +VAT +VAT £4,119.00 +VAT Sale

Have you registered your disability VAT exemption?

Registered customers with a valid disability VAT exemption will benefit from no added VAT at checkout.

Register or Login

Prices start from just £4,119.00 depending on specification.

Assessment and demonstration strongly advised before purchasing since this is a bespoke prescriptive item built to your requirements. To arrange simply give us a call on 01572 755204.

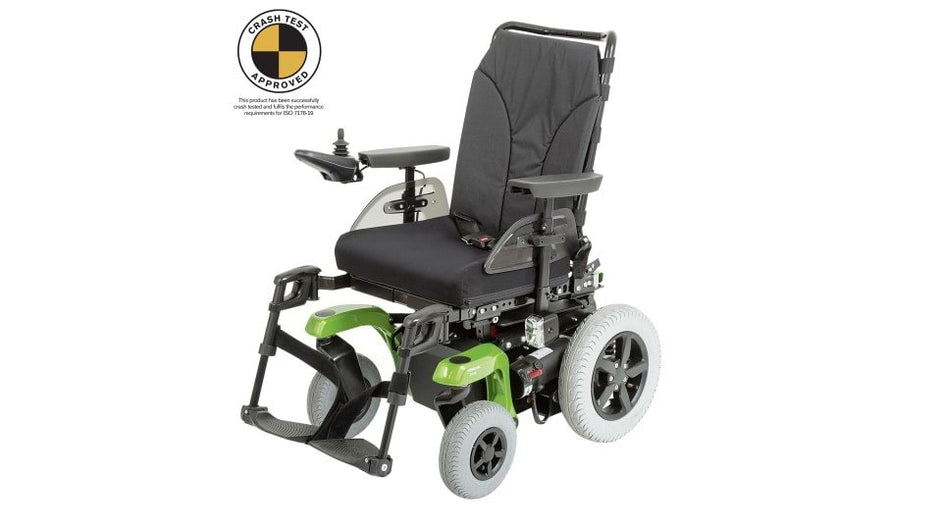

Juvo B5/B6 Power Wheelchair

Enhance Life. Demand Quality.

The Juvo B5 & B6 power wheelchairs have a modular design that offers almost boundless possibilities for assembling custom-made devices for complex requirements.

With front-wheel, mid-wheel and rear-wheel drive, you have the option to choose between the specific driving characteristics and motor powers of three drive types in two frame widths.

A high degree of flexibility is assured by the new VAS (variably adjustable seat) frame solution with Ergo-Joint back support angle adjustment as well as innovative special and environmental controls, among other features.

Mid Wheel Drive (MWD)
.

The mid-wheel drive offers incomparable driving characteristics for all fields of application. The single-wheel suspension and torsion drive system form the basis for this intuitive drive type. Thanks to the direct pivot point, safe handling is possible even with more complex forms of input.

Why mid-wheel drive?
  • Intuitive movement and driving thanks to central pivot point
  • Maximum stability against tipping
  • Optimum weight distribution
  • Low centrifugal forces
  • Ideal for indoor and outdoor use
  • Easily navigate curbs
  • User comfort
  • Postural stability
  • 100-hour test during development
Front Wheel Drive (FWD)

The front-wheel drive can easily overcome obstacles such as curbs thanks to its large drive wheels. It also offers you good transfer possibilities and a high degree of manoeuvrability. The wheelchair has a relatively small turning radius with a usual 90° motion and the ability to drive especially close to objects such as furniture or desks.

Why front wheel drive?
  • Compact design
  • Very small turning radius
  • Drives up close to objects
  • Good overview in front of the wheelchair
  • Ideal for indoor and outdoor use
  • Easily navigate curbs
  • User comfort
  • Good leg positioning
  • Postural stability
  • 100-hour test during development
Rear Wheel Drive (RWD)

The rear-wheel drive offers numerous variations when it comes to speed and features, and the design also permits optimum force distribution on various surfaces. Thanks to its directional stability, the Juvo with rear-wheel drive is ideally suited for outdoor use and is easy for most users to learn.

Why rear-wheel drive?
  • Excellent directional stability, even at higher speeds
  • Flexible centre of gravity distribution
  • Good drive wheel traction when driving up and down slopes
  • Ideal for indoor and outdoor use
  • Easily navigate curbs
  • User comfor
  • t
  • Postural stability
  • 100-hour test during development
Technical data
1
Speeds 6 / 7.2 / 10 / 14 km/h
Battery capacity 53Ah (C5) for Juvo B5, 63Ah (C5) for Juvo B6
Range (acc. to ISO 7176-4) 35 km
Control unit VR2 or Ottobock TEN°
Max. load capacity Chassis size 1: 140 kg Chassis size 2: 160 kg
Obstacle negotiation capability Front-wheel drive: 100 mm Rear-wheel drive: 65 mm, optional 100 mm
Climbing ability (ISO 7176-2) 10° / 17%
Overall width Chassis size 1: 600 mm Chassis size 2: 640 mm
Seat height (depending on seating solution) 400–550 mm
Seat width 340–560 mm
Seat depth 340–500 mm
Back angle 0° to +30°
Seat tilt 45° power
Seat inclination -3° / 0° / 3° / 6°
Back height 450 / 550 mm
Arm support height 225–350 mm
Lower leg length 250–540 mm
Max. charging time2 hours
Weight from 107 kg
