Juvo B4 Power Wheelchair

Regular price +VAT +VAT £3,075.00 +VAT Sale

Have you registered your disability VAT exemption?

Registered customers with a valid disability VAT exemption will benefit from no added VAT at checkout.

Register or Login

Prices start from just £3,075.00 depending on specification.

Assessment and demonstration strongly advised before purchasing since this is a bespoke prescriptive item built to your requirements. To arrange simply give us a call on 01572 755204.

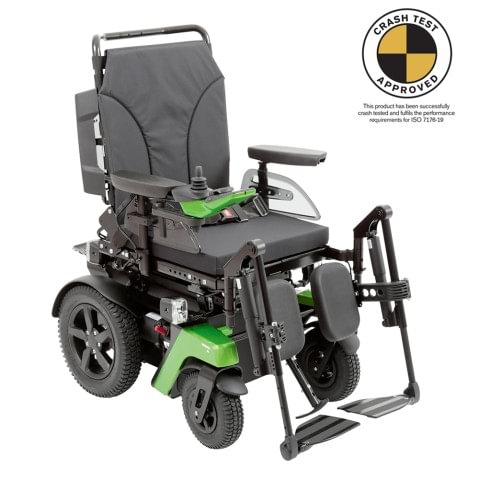

Juvo B4 Power Wheelchair

Compact and robust entry-level model

The Juvo B4 with rear-wheel drive offers enhanced safety and comfortable damping characteristics for outdoor use. It is also compact and manoeuvrable indoors. Permanent drive wheel suspension compensates for uneven surfaces and the wheelchair’s small outside dimension makes it easier to drive through narrow doorways and navigate in confined spaces.

Like all models in the Juvo product line, the B4 features a modular design and offers a high level of flexibility. The available options and features for the mobility base, seating unit and control device result in a modern and customised fitting. High-quality components such as the variably adjustable seat (VAS) or the TEN° control device can also be selected.

Mobility base

The rear-wheel drive mobility base of the B4 is robust, durable and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm. Smaller wheel sizes are available for indoor use

Drive wheel suspension

Permanent drive wheel suspension compensates for uneven surfaces and ensures enhanced safety and comfortable damping. This can be further optimised with an additional front suspension

Anti-tipper rollers

Integrated anti-tipper rollers ensure enhanced safety and protect against damage when driving backward.

Technical data
Speeds 6/7.2/10 km/h
Rated battery capacity AGM 53 Ah (C5), 62 Ah (C20) Gel 63 Ah (C5), 74 Ah (C20)
Driving distances ranges (according to ISO 7176-4) up to 35 km with AGM battery 53 Ah (C5), 62 Ah (C20) 45 km with gel battery 63 Ah (C5), 74 Ah (C20)
Control device VR2 or TEN°
Max. load 160 kg
Obstacle height the wheelchair is able to overcome 50, 85 or 90 mm optional
Climbing ability (according to ISO 7176-2) 7° (12%)
Overall width 585–595 mm
Min. turning radius (acc. to ISO 7176-5) from 800 mm
Seat height (depending on seating solution) 410–570 mm
Seat width 340–560 mm
Seat depth 340–580 mm
Back support angle -9° to +30° mechanical 0° to +30° power
Seat tilt 20°/45° power
Seat inclination -3° / 0° / 3° / 6° / 9°
Back support height 370–550 mm
Arm support height 200–400 mm
Lower leg length 150–540 mm
Max. charging time 12 h
Weight when empty from 93.5 kg
